SUPERIOR    FEATURES



NOT

 A WATER HEATING DEVICE

(CLICK IMAGE for CLOSE-UP)

Hot water circulating pump, hot water pump, hot water recirculation, hot water recirculator

Ships with Premium

 7-Day Timer (not shown)

A - INTERCHANGEABLE CONTROL PLUG-IN (Standard 3-Prong Socket)
This standard socket allows for quick-n-easy control customization to most any desired type of control.



Examples include:


B - CONTROL ENABLER PLUG (Standard 2-Prong Plug)
This plug connects to whatever control device is plugged into (A) interchangeable control socket.  Plugging (B) directly into (A) without any control device enables the RedyTemp to operate 24hours a day cycling on and off only as needed to maintain the temperature set at (D).

C - ON-DEMAND / OVERRIDE CONNECTION RJ11 STANDARD PHONE JACK.
Allows for easy installation of a simple non-illuminating doorbell button (available at home improvement stores at around $2.00) or other momentary contact switch that best matches a rooms decor.  Simply splice and connect the doorbell button or switch into one end of a standard phone cords middle two wires and plug the other end into the RJ11 jack. This switch gives the homeowner the means to "single-cycle" override the control / timer for use during scheduled-off time periods. Additionally, this also enables the homeowner to operate their circulation system in an "On-Demand" push-button mode.   Multiple push-buttons can be easily installed throughout the home by simply using a 5-plug modular phone adapter which are easily available at home improvement / electronics / 99 cent stores.

D = TEMPERATURE ADJUSTMENT DIAL.
Allows the homeowner to control / optimize their hot water comfort to their desired temperature.  As well, homeowners have the ability to  prevent pipes from freezing by using RedyTemp's lower temp settings if desired.  Range is from 50F to 115F. With people having unique comfort standards for hot water, this have-it-your-way feature makes the RedyTemp a win win solution.. Allowing a homeowner to maximize their hot water comfort without loosing control of their cold water comfort.  If the homeowner was to experience loss of cold water comfort, the homeowner need only adjust the back down the temperature to a more optimal setting.  Thereby, preventing the over pumping which caused the loss of cold water comfort.  RedyTemp's extremely accurate half-a-degree incremental adjustment capability ensures optimal comfort.


E = Hot Water Supply Connection. 1/2" connection

F = Hot Water Faucet Connection 1/2" connection

G = Cold Water Supply Connection 1/2" connection

H = Cold Water Faucet Connection 1/2" connection



CLOSED LOOP (dedicated return line) and OPEN LOOP (non-dedicated return line) installations.

Advanced engineering allows the RedyTemp to efficiently operate on both a closed loop and an open loop (uses cold line as return line) circulation system.  On a closed loop system install which has a dedicated return line, you need only cap-off the two faucet connection ports and connect the RedyTemp to the loop using (E) for the hot water supply and (G) for the return.

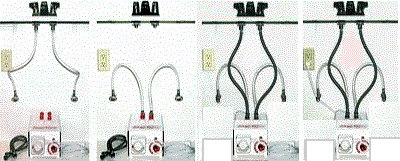

SUPER EASY INSTALLATION



EASY  AS        ONE             TWO           THREE
